Structural · S-F57KJ

Steel Beam Setback and Curtain Wall Connection Detail

Materials

Concrete Steel

Elements

Beams Walls Curtain Walls Decks Anchors / Embeds Connections / Plates

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

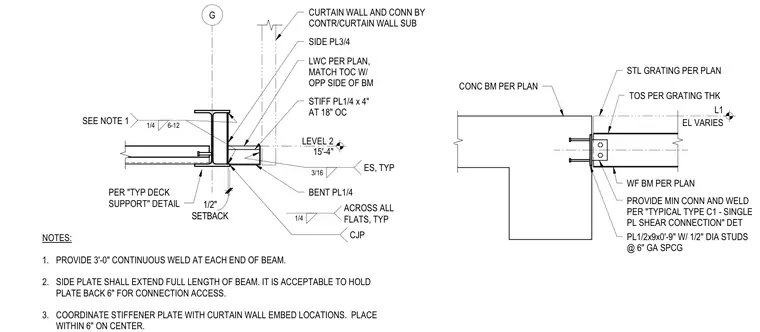

A structural steel beam setback connection is supported by a concrete beam, featuring a wide-flange beam with a side plate, lightweight concrete fill, and steel grating. The steel beam connects to the concrete via an embedded plate with half-inch diameter studs at six-inch gauge spacing, utilizing a single plate shear connection. Stiffener plates measuring one-quarter by four inches are spaced at eighteen inches on center and coordinated with curtain wall embed locations. A three-foot continuous weld is provided at each end of the beam, and the side plate extends the full length of the beam with a six-inch hold-back permitted for connection access. A bent plate and specific fillet and complete joint penetration welds secure the assembly.
