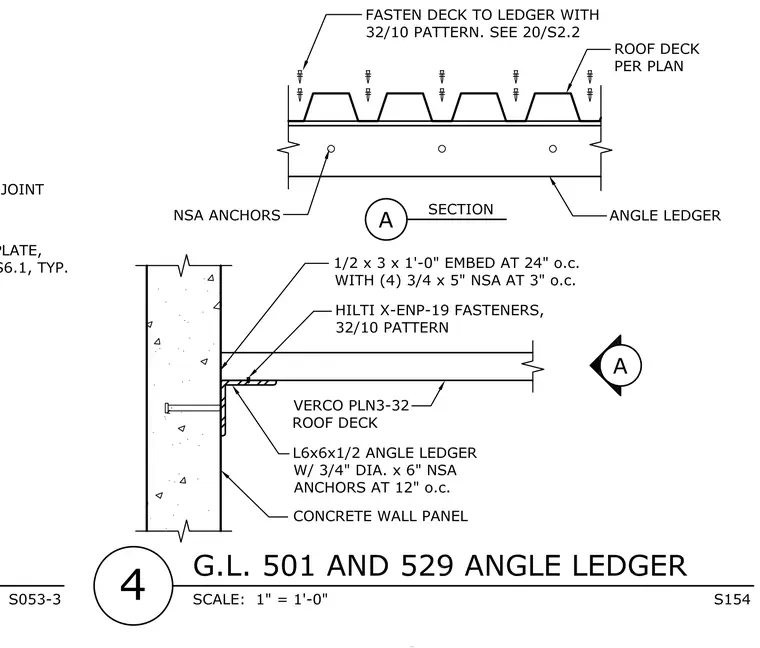

An L6x6x1/2 angle ledger is anchored to a concrete wall panel using three-quarter-inch diameter by six-inch NSA anchors spaced at twelve inches on center. A Verco PLN3-22 roof deck bears on the angle ledger and is fastened with Hilti X-ENP-19 fasteners in a 32/10 pattern. An embedded plate measuring one-half by three inches by one foot zero inches is spaced at twenty-four inches on center with four three-quarter by five-inch NSA anchors at three inches on center.
