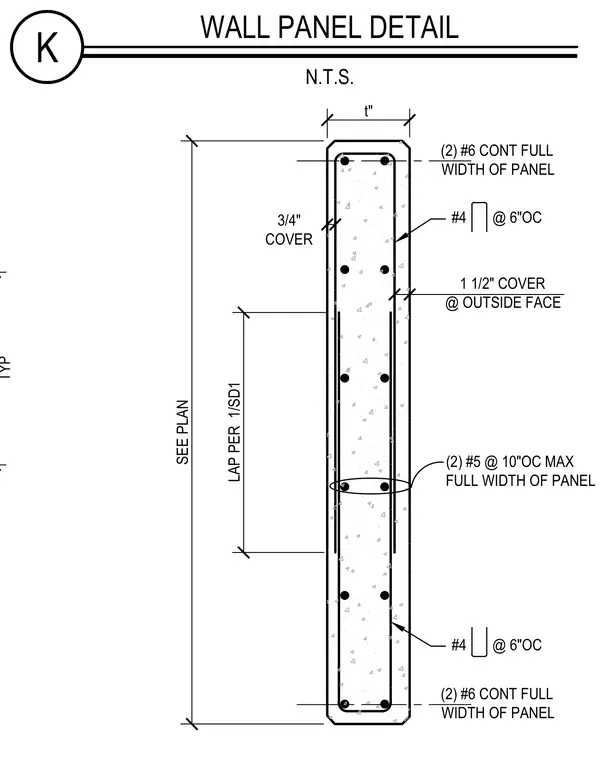

A reinforced concrete wall panel section with specified rebar sizes, continuous horizontal and vertical bars, and concrete cover dimensions. Two continuous number 6 bars span the full width of the panel at both top and bottom edges. Number 4 stirrups are spaced at six inches on center with a three-quarter-inch concrete cover. Additional reinforcement includes two number 5 bars spaced at ten inches on center maximum across the full width, with lap splices detailed per structural notes.
SEE PLAN t" 3/4" COVER 1 1/2" COVER @ OUTSIDE FACE #4 @ 6"OC #4 @ 6"OC (2) #6 CONT FULL WIDTH OF PANEL (2) #5 @ 10"OC MAX FULL WIDTH OF PANEL (2) #6 CONT FULL WIDTH OF PANEL LAP PER 1/SD1 K WALL PANEL DETAIL N.T.S. TYP
