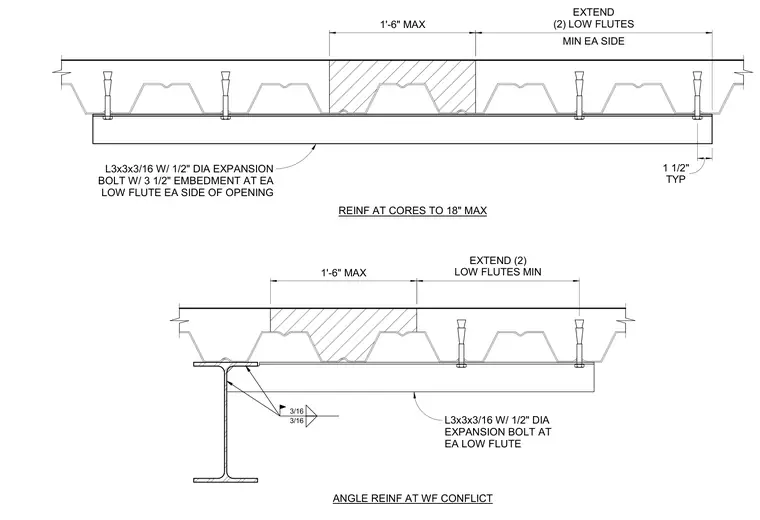

Roof or floor opening reinforcement in metal deck construction includes angle framing at wide-flange beam conflicts. L3x3x3/16 structural angles are secured at each low flute of the metal deck using 1/2-inch diameter expansion bolts with a 3 1/2-inch embedment. Two low flutes are extended minimum on each side of the opening. Additional reinforcement is provided at cores up to 18 inches maximum and at wide-flange beam conflicts with 3/16-inch welds.
1'-6" MAX MIN EA SIDE EXTEND (2) LOW FLUTES L3x3x3/16 W/ 1/2" DIA EXPANSION BOLT W/ 3 1/2" EMBEDMENT AT EA LOW FLUTE EA SIDE OF OPENING TYP 1 1/2" 1'-6" MAX L3x3x3/16 W/ 1/2" DIA EXPANSION BOLT AT EA LOW FLUTE EXTEND (2) LOW FLUTES MIN 3/16 3/16 REINF AT CORES TO 18" MAX ANGLE REINF AT WF CONFLICT
