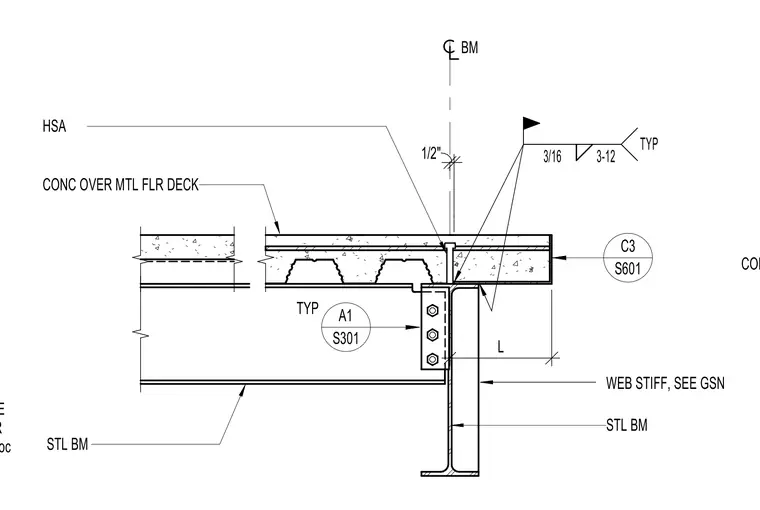

A concrete topping slab over metal floor deck bears on a structural steel beam. The beam web is reinforced with a web stiffener plate per general structural notes. An L2x2x3/16 edge angle supports the outrigger at each beam and at four feet on center. Three-sixteenths inch fillet welds are specified typically with weld spacing noted. A half-inch dimension establishes the clearance at the beam centerline.
L2x2x3/16 EDGE ANGLE SUPPORT OUTRIGGER AT EA BM AND AT 4'-0"oc STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM WEB STIFF, SEE GSN A1 S301 C3 S601 3/16 3-12 TYP TYP CONC OVER MTL FLR DECK
