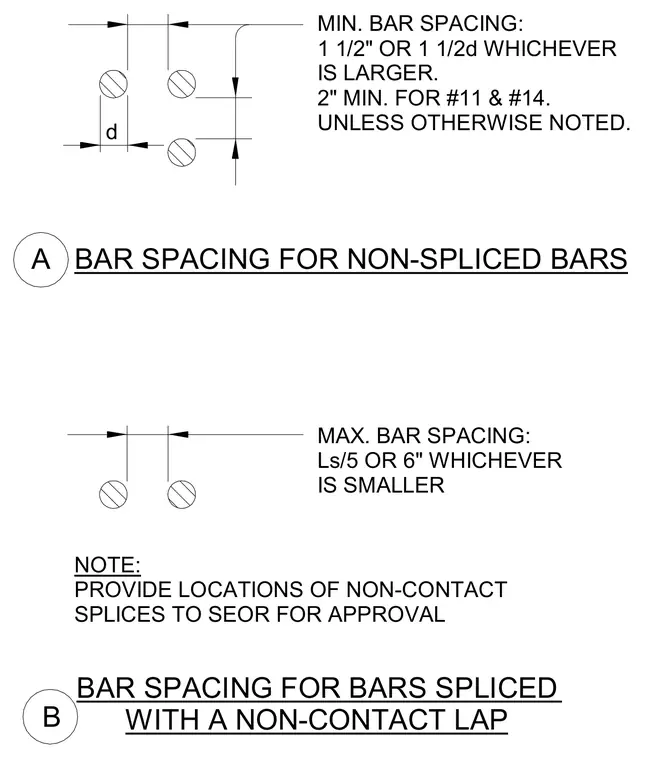

Reinforcing bars require a minimum bar spacing of one and one-half inches or one and one-half bar diameters, whichever is larger, with a two-inch minimum required for number eleven and number fourteen bars. Maximum bar spacing is limited to span length divided by five or six inches, whichever is smaller. Non-contact splice locations must be submitted to the structural engineer of record for approval.
MIN. BAR SPACING: 1 1/2" OR 1 1/2d WHICHEVER IS LARGER. 2" MIN. FOR #11 & #14. UNLESS OTHERWISE NOTED. d MAX. BAR SPACING: Ls/5 OR 6" WHICHEVER IS SMALLER NOTE: PROVIDE LOCATIONS OF NON-CONTACT SPLICES TO SEOR FOR APPROVAL BAR SPACING FOR NON-SPLICED BARS A BAR SPACING FOR BARS SPLICED WITH A NON-CONTACT LAP B
