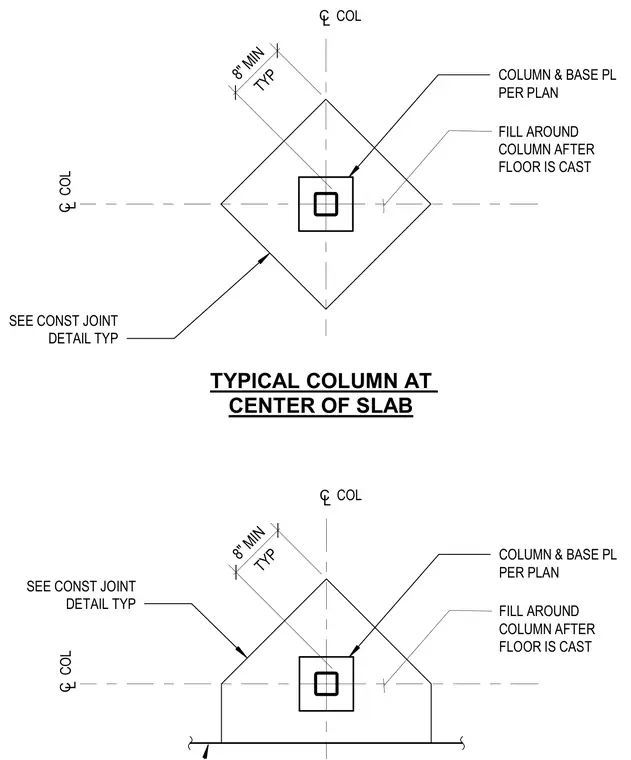

The structural detail displays column and base plate locations sized per plan centered within a concrete slab cutout. The surrounding void is specified to be filled around the column after the main floor slab is cast. A minimum dimension of eight inches is maintained from the column face to the surrounding construction joint. Construction joints are coordinated with typical project detail requirements.
COLUMN & BASE PL PER PLAN FILL AROUND COLUMN AFTER FLOOR IS CAST COL C L SEE CONST JOINT DETAIL TYP COL CL TYP 8" MIN TYPICAL COLUMN AT CENTER OF SLAB COLUMN & BASE PL PER PLAN FILL AROUND COLUMN AFTER FLOOR IS CAST COL CL SEE CONST JOINT DETAIL TYP COL CL TYP 8" MIN
