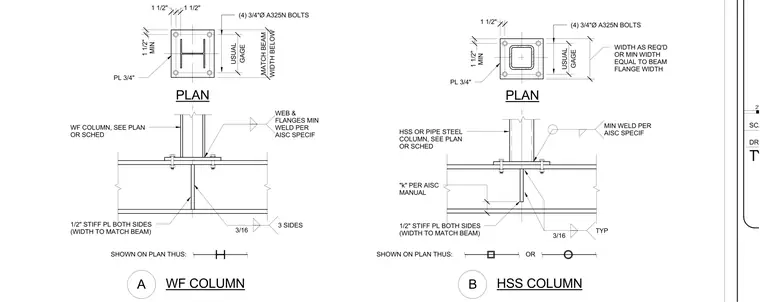

The wide flange column connects to a wide flange beam through a three-quarter-inch base plate secured by four three-quarter-inch diameter A325N bolts, with half-inch stiffener plates on both sides of the beam web matching the beam width. The hollow structural section or pipe steel column uses a similar base plate connection with specified gauge dimensions and minimum welds per AISC specifications. The supporting beam web features half-inch stiffener plates on both sides sized to match the beam width and detailed with three-sixteenth-inch fillet welds on three sides.
SHOWN ON PLAN THUS: 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) WF COLUMN, SEE PLAN OR SCHED PL 3/4" SHOWN ON PLAN THUS: OR HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL (4) 3/4"Ø A325N BOLTS HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF . MIN 1 1/2" 1 1/2" GAGE USUAL MIN 1 1/2" 1 1/2" 1 1/2" GAGE USUAL WIDTH BELOW MATCH BEAM MIN WELD PER AISC SPECIF 3/16 TYP WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH . DRAWN BY:: SCALE:: 2' TYPICAL STEEL DETAILS
