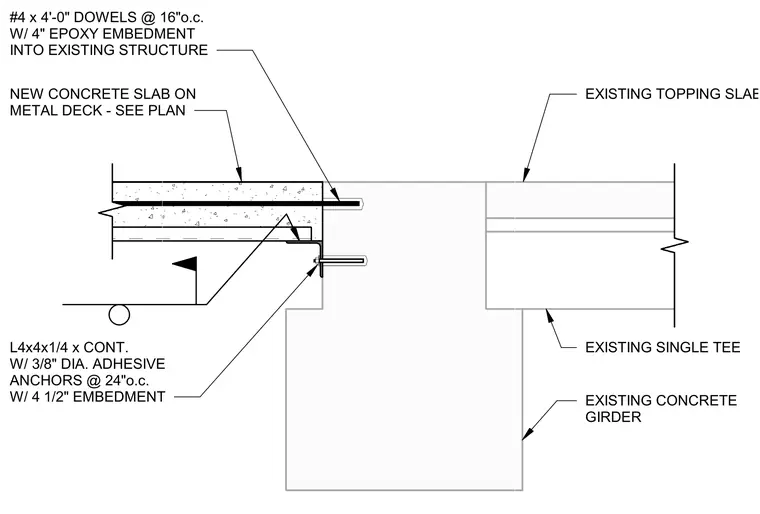

A new concrete slab on metal deck bears on an existing concrete girder adjacent to an existing single tee and topping slab. A continuous L4x4x1/4 angle supports the metal deck edge, secured to the existing concrete with three-eighths-inch diameter adhesive anchors at twenty-four inches on center with four and one-half inches of embedment. Number 4 by four-foot-zero-inch dowels at sixteen inches on center with four inches of epoxy embedment tie the new slab into the existing structure.
#4 x 4'-0" DOWELS @ 16"o.c. W/ 4" EPOXY EMBEDMENT INTO EXISTING STRUCTURE NEW CONCRETE SLAB ON METAL DECK - SEE PLAN L4x4x1/4 x CONT. W/ 3/8" DIA. ADHESIVE ANCHORS @ 24"o.c. W/ 4 1/2" EMBEDMENT EXISTING TOPPING SLAB EXISTING SINGLE TEE EXISTING CONCRETE GIRDER
