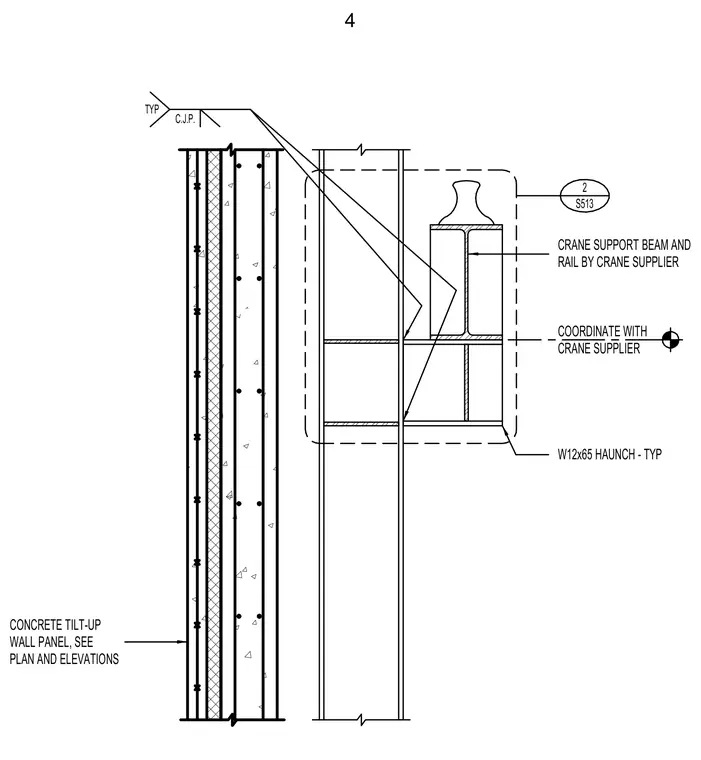

A crane support beam and rail are mounted on a structural steel W12x65 haunch welded typical with complete joint penetration welds to an embedded plate in a concrete tilt-up wall panel. The crane beam and rail are provided and installed by the crane supplier, requiring coordination with the supplier for exact positioning and loads. The concrete tilt-up wall panel dimensions and reinforcement are sized per plan and elevations.
2 S513 CRANE SUPPORT BEAM AND RAIL BY CRANE SUPPLIER TYP C.J.P. CONCRETE TILT-UP WALL PANEL, SEE PLAN AND ELEVATIONS COORDINATE WITH CRANE SUPPLIER W12x65 HAUNCH - TYP 4
