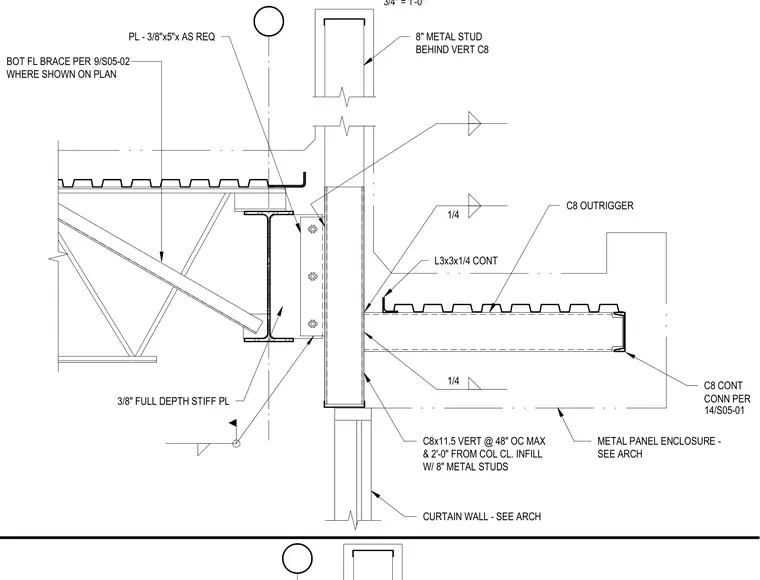

A continuous C8x11.5 vertical channel acts as a column, spaced at forty-eight inches on center maximum and two feet from the column centerline, with infill eight-inch metal studs. An outrigger constructed from a C8 channel connects via continuous angles and connections per detail fourteen on sheet S05-01, supporting a metal panel enclosure per architectural drawings. A three-eighths-inch full-depth stiffener plate is welded to the supporting steel beam with a quarter-inch fillet weld. A bottom flange brace connects per detail nine on sheet S05-02 where shown on plan, complemented by a plate measuring three-eighths by five inches as required.
METAL PANEL ENCLOSURE - SEE ARCH L3x3x1/4 CONT C8 CONT CONN PER C8 OUTRIGGER C8x11.5 VERT @ 48" OC MAX & 2'-0" FROM COL CL. INFILL W/ 8" METAL STUDS 14/S05-01 BOT FL BRACE PER WHERE SHOWN ON PLAN 9/S05-02 PL - 3/8"x5"x AS REQ 1/4 CURTAIN WALL - SEE ARCH 8" METAL STUD BEHIND VERT C8 3/8" FULL DEPTH STIFF PL 1/4 3/4" = 1'-0"
