Typical Column Base Plate Types 1 and 2

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Embed Plate

About this detail

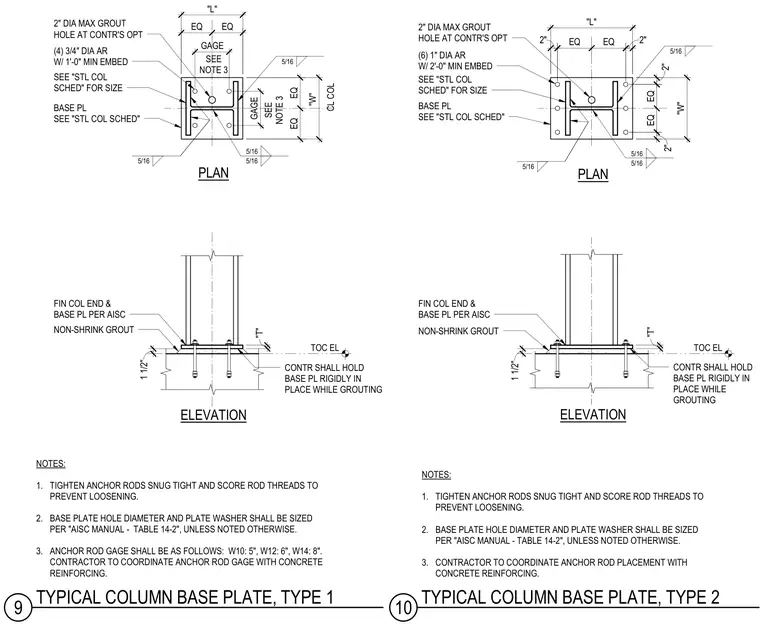

Steel column base plates bear upon a concrete foundation with non-shrink grout placed beneath the plate. Type 1 utilizes four three-quarter-inch anchor rods with a one-foot minimum embedment, while Type 2 utilizes six one-inch anchor rods with a two-foot minimum embedment. Finished column ends and base plates conform to AISC standards, connected by five-sixteenth-inch fillet welds. Anchor rods are installed snug tight with scored threads to prevent loosening, and plate washers and hole diameters are sized per AISC Manual Table 14-2.
