Weak Axis Braced Frame Base Plate Connection

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bolted Connection

About this detail

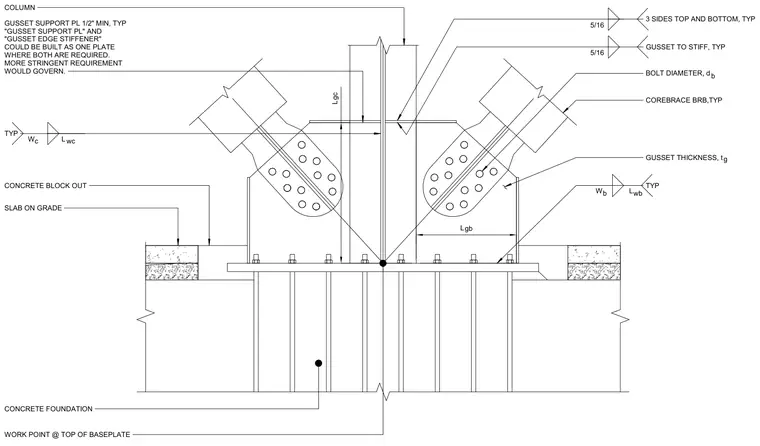

Buckling restrained braces connect to gusset plates welded to a structural column and base plate, anchored to a concrete foundation. A five-sixteenths inch fillet weld secures the gusset to the stiffener plate on three sides top and bottom. A one-half inch minimum gusset support plate and gusset edge stiffener may be built as a single plate where both are required, with the more stringent requirement governing. Concrete blockouts surround the base within the slab on grade, and a work point is established at the top of the base plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
