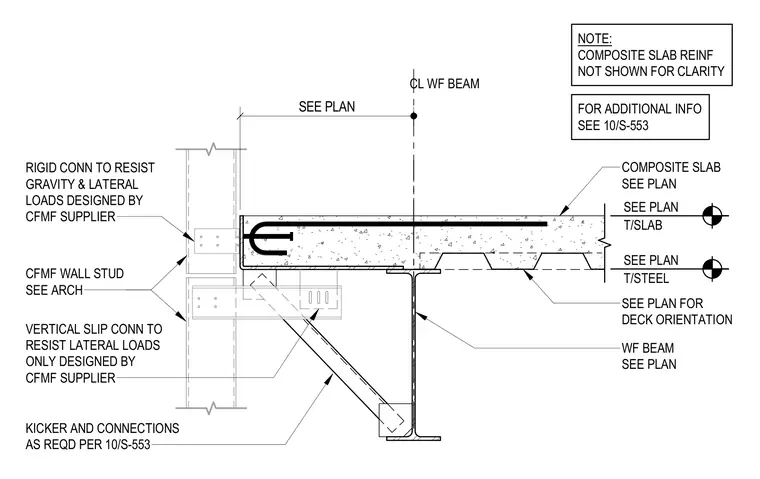

A cold-formed metal framing wall stud bears against a composite slab on a wide-flange steel beam. A rigid connection designed by the cold-formed metal framing supplier resists gravity and lateral loads at the top of the wall. A vertical slip connection designed by the supplier resists lateral loads only further down the stud. A kicker brace connects the steel beam to the framing assembly as required per sheet 10/S-553. Composite slab reinforcement is omitted for clarity.
CL WF BEAM SEE PLAN FOR DECK ORIENTATION COMPOSITE SLAB SEE PLAN WF BEAM SEE PLAN T/SLAB SEE PLAN T/STEEL SEE PLAN SEE PLAN RIGID CONN TO RESIST GRAVITY & LATERAL LOADS DESIGNED BY CFMF SUPPLIER CFMF WALL STUD SEE ARCH VERTICAL SLIP CONN TO RESIST LATERAL LOADS ONLY DESIGNED BY CFMF SUPPLIER KICKER AND CONNECTIONS AS REQD PER 10/S-553 FOR ADDITIONAL INFO SEE 10/S-553 NOTE: COMPOSITE SLAB REINF NOT SHOWN FOR CLARITY
