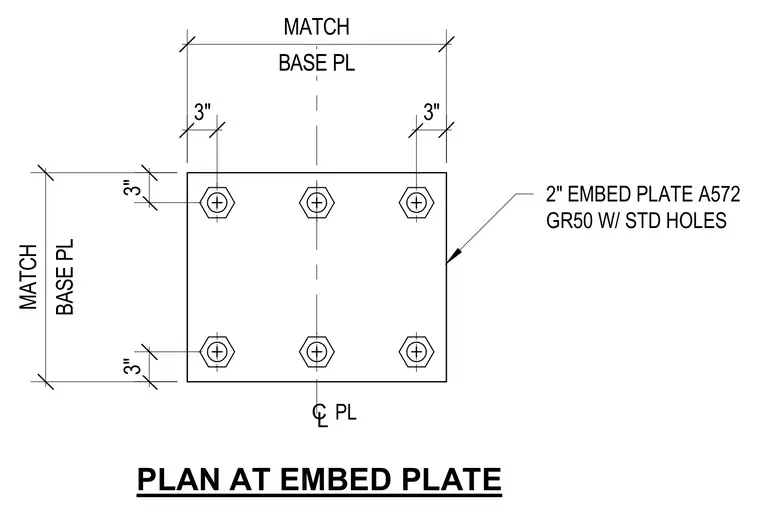

This structural plan detail shows an ASTM A572 Grade 50 steel embed plate with standard holes and a six-bolt anchor pattern. The plate is dimensioned symmetrically around centerlines matching the base plate above, featuring three-inch edge distances and spacing. Six anchor bolts are arranged in two rows of three along the length of the plate.
3" 3" 3" 3" BASE PL MATCH CL PL BASE PL MATCH PLAN AT EMBED PLATE 2" EMBED PLATE A572 GR50 W/ STD HOLES
