A tapered steel beam connects to an edge beam using a full height one-half inch shear tab secured with bolts. A weld plate is applied at the bottom flange matching the thickness and width of the top flange typically at the splice. Three-quarter inch stiffener plates are positioned at each face of the beam matching the beam width with a minimum eighteen inch dimension. Five-sixteenth inch fillet welds are specified at four inches on center typically.

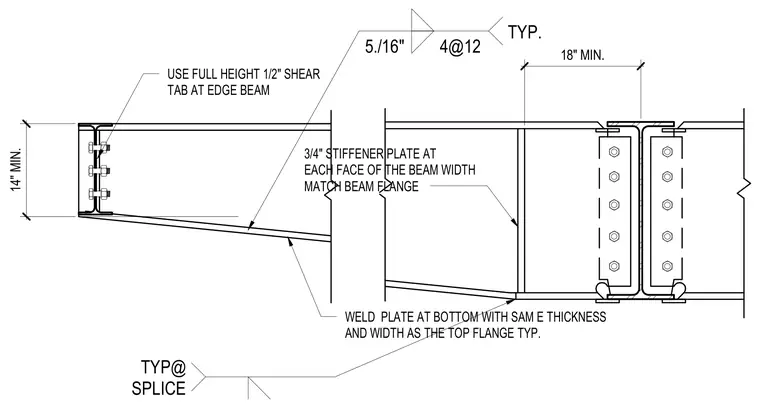

14" MIN. WELD PLATE AT BOTTOM WITH SAM E THICKNESS AND WIDTH AS THE TOP FLANGE TYP. 3/4" STIFFENER PLATE AT EACH FACE OF THE BEAM WIDTH MATCH BEAM FLANGE 18" MIN. 5./16" 4@12 TYP. USE FULL HEIGHT 1/2" SHEAR TAB AT EDGE BEAM TYP@ SPLICE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
