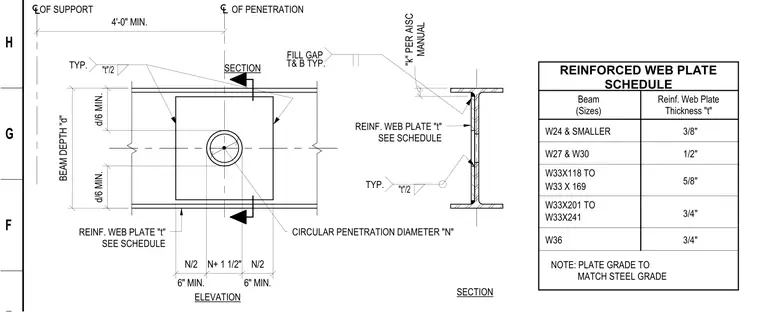

A structural steel beam web is reinforced around a circular penetration with welded steel plates on both sides of the web. The reinforced web plate thickness is selected from a schedule based on beam size, ranging from three-eighths inch for W24 and smaller up to three-quarters inch for W36, with plate grade matching the structural steel grade. The penetration maintains a minimum distance of four feet from the support, with a minimum vertical clearance of one-sixth of the beam depth above and below the opening. Welds are provided at the top and bottom of the reinforced plate with a thickness equal to half the plate thickness, and gaps are filled top and bottom typical. The horizontal plate dimensions extend N over two plus one and a half inches plus N over two around the penetration diameter N, maintaining a six-inch minimum dimension.
NOTE: PLATE GRADE TO MATCH STEEL GRADE W36 W33X241 W27 & W30 W24 & SMALLER W33 X 169 W33X118 TO W33X201 TO Beam (Sizes) Reinf. Web Plate Thickness "t" 3/8" 1/2" 5/8" 3/4" 3/4" REINFORCED WEB PLATE SCHEDULE TYP. "t"/2 MANUAL "k" PER AISC REINF. WEB PLATE "t" SEE SCHEDULE FILL GAP T& B TYP. 6" MIN. N/2 N+ 1 1/2" 6" MIN. N/2 CIRCULAR PENETRATION DIAMETER "N" OF SUPPORT OF PENETRATION 4'-0" MIN. TYP. "t"/2 d/6 MIN. d/6 MIN. BEAM DEPTH "d" REINF. WEB PLATE "t" SEE SCHEDULE SECTION ELEVATION SECTION H G F
