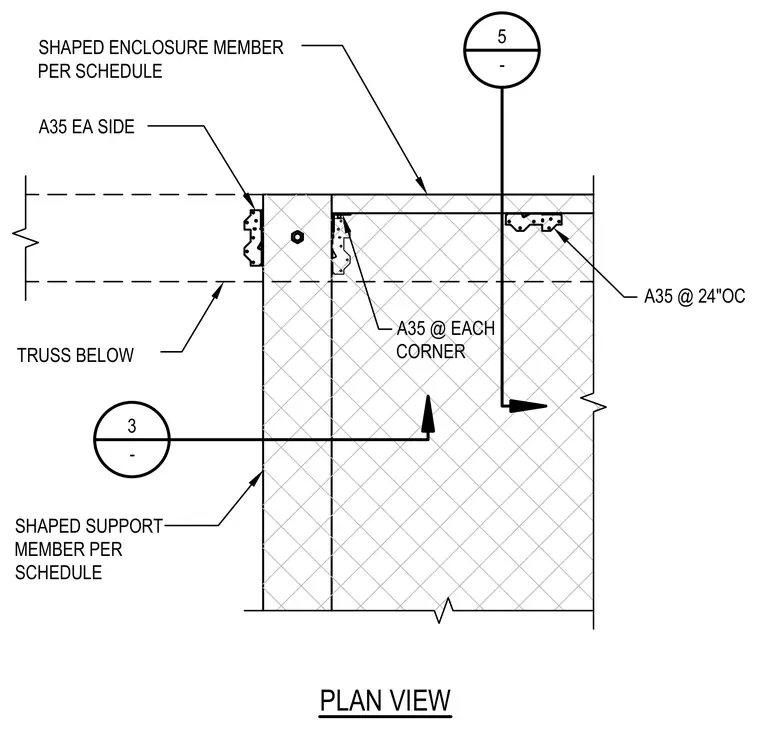

This plan detail shows a truss corner connection with shaped enclosure and support members sized per schedule. Framing clips secure the members with A35 fasteners located on each side, at each corner, and at twenty-four inches on center spacing. A truss is positioned below the connection assembly.
SHAPED ENCLOSURE MEMBER PER SCHEDULE SHAPED SUPPORT MEMBER PER SCHEDULE A35 EA SIDE A35 @ EACH CORNER TRUSS BELOW A35 @ 24"OC 5 - PLAN VIEW 3 -
