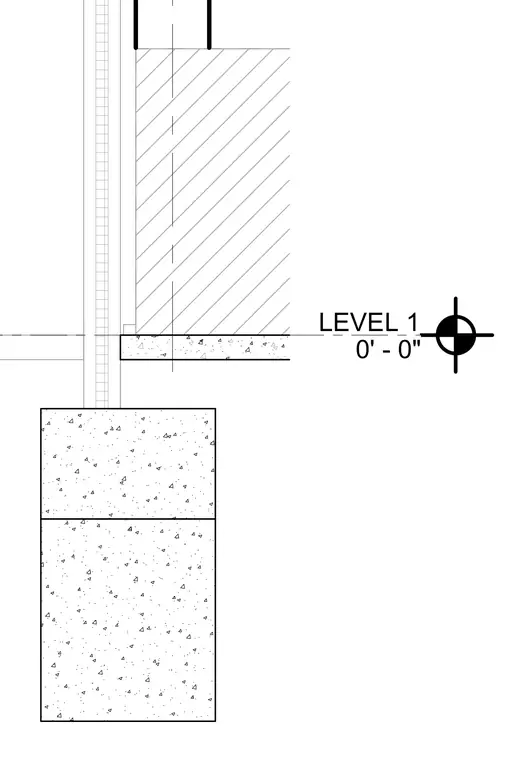

A vertical screen wall assembly bears on a continuous concrete foundation wall supported by a concrete footing below. The finished floor elevation is established at Level 1, set at zero feet and zero inches. The screen wall extends upward past the foundation interface.
