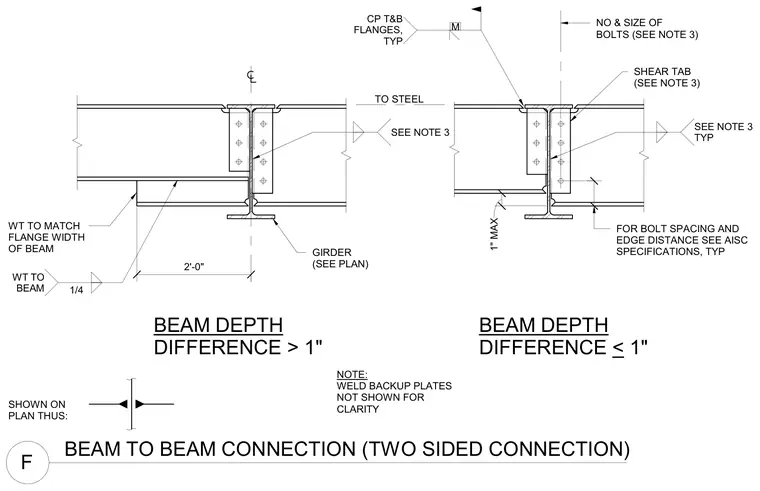

Two secondary steel beams frame into a supporting steel girder from opposite sides using bolted shear tabs. A structural tee section matches the flange width of the supported beam and is welded to the underside with a quarter-inch fillet weld when beam depth differences exceed one inch. A one-inch maximum clearance is maintained at the flange transition. Complete penetration welds connect the top and bottom flanges. Weld backup plates are omitted for clarity.
BEAM TO BEAM CONNECTION (TWO SIDED CONNECTION) F BEAM DEPTH DIFFERENCE > 1" BEAM DEPTH DIFFERENCE < 1" NOTE: WELD BACKUP PLATES NOT SHOWN FOR CLARITY TO STEEL NO & SIZE OF BOLTS (SEE NOTE 3) FOR BOLT SPACING AND EDGE DISTANCE SEE AISC SPECIFICATIONS, TYP SHEAR TAB (SEE NOTE 3) GIRDER (SEE PLAN) WT TO MATCH FLANGE WIDTH OF BEAM SHOWN ON PLAN THUS: 2'-0" 1/4 WT TO BEAM SEE NOTE 3 1" MAX . CP T&B FLANGES, TYP SEE NOTE 3 TYP M
