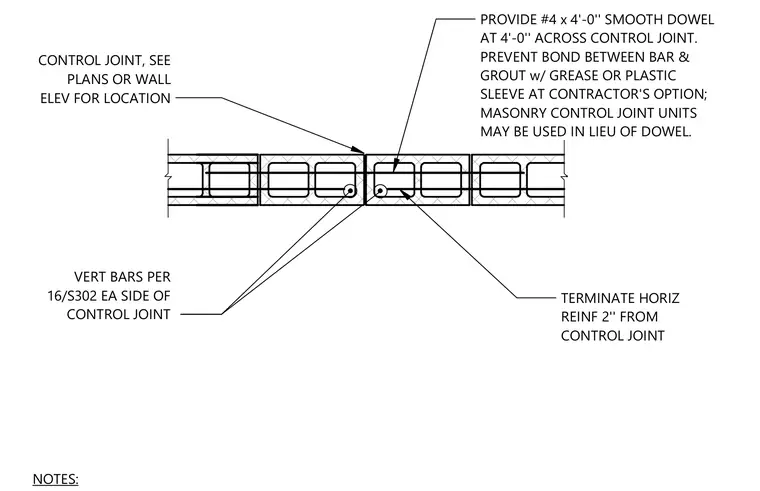

Vertical reinforcing bars are placed on each side of the control joint per structural drawings. Horizontal reinforcement terminates two inches from the joint. A number 4 by four-foot smooth dowel spans across the control joint at four-foot spacing, with bond prevented between the bar and grout using grease or a plastic sleeve at the contractor's option. Alternatively, masonry control joint units may be used in lieu of the dowel.
NOTES: CONTROL JOINT, SEE PLANS OR WALL ELEV FOR LOCATION VERT BARS PER 16/S302 EA SIDE OF CONTROL JOINT TERMINATE HORIZ REINF 2'' FROM CONTROL JOINT PROVIDE #4 x 4'-0'' SMOOTH DOWEL AT 4'-0'' ACROSS CONTROL JOINT. PREVENT BOND BETWEEN BAR & GROUT w/ GREASE OR PLASTIC SLEEVE AT CONTRACTOR'S OPTION; MASONRY CONTROL JOINT UNITS MAY BE USED IN LIEU OF DOWEL.
