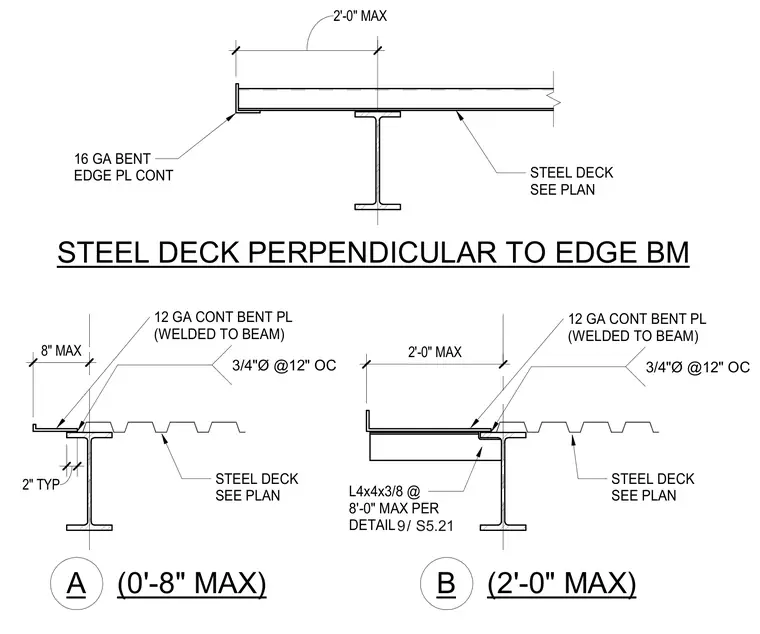

Steel deck runs perpendicular to an edge beam with two alternative conditions. The assembly features a continuous sixteen gauge bent edge plate at the perimeter and steel deck sized per plan bearing over structural steel beams. Twelve gauge continuous bent plates are welded to the beam top flange with three-quarter-inch diameter studs at twelve inches on center. Condition B incorporates an additional L4x4x3/8 angle spaced at eight feet maximum per detail nine on sheet S5.21.
STEEL DECK PERPENDICULAR TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 8" MAX 2'-0" MAX 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX L4x4x3/8 @ 8'-0" MAX PER DETAIL 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) B 2" TYP / 9 S5.21
