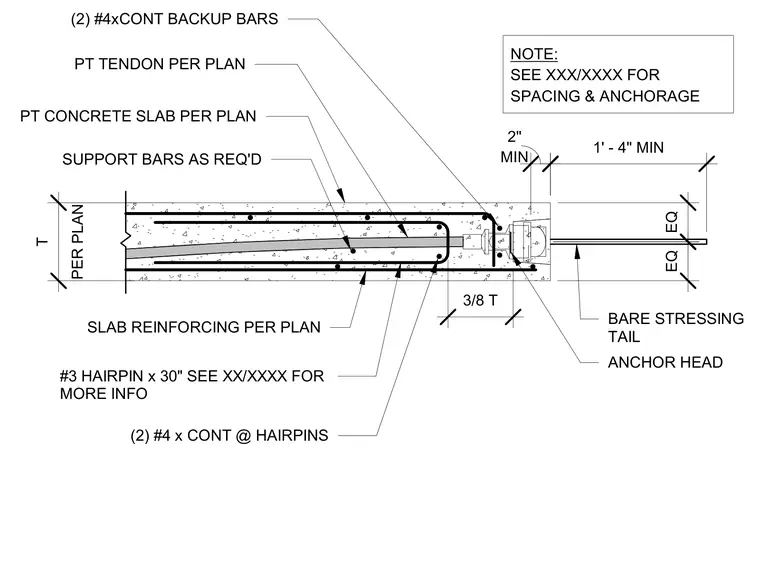

A post-tensioned concrete slab terminates at a stressing end with an anchor head and a bare stressing tail extending outward. The assembly features two continuous number four backup bars, required support bars, and slab reinforcing as specified per plan. Confinement is provided by a thirty-inch number three hairpin accompanied by two continuous number four bars at the hairpin. Minimum edge distance and thickness dimensions are maintained with specified clearances.
(2) #4xCONT BACKUP BARS PT TENDON PER PLAN PT CONCRETE SLAB PER PLAN (2) #4 x CONT @ HAIRPINS NOTE: SEE XXX/XXXX FOR SPACING & ANCHORAGE SUPPORT BARS AS REQ'D #3 HAIRPIN x 30" SEE XX/XXXX FOR MORE INFO SLAB REINFORCING PER PLAN BARE STRESSING TAIL ANCHOR HEAD 3/8 T PER PLAN T MIN 2" 1' - 4" MIN EQ EQ
