Concrete Foundation Wall and Footing Details at Window and Opening

Materials

Concrete Glass / Glazing

Elements

Walls Windows Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

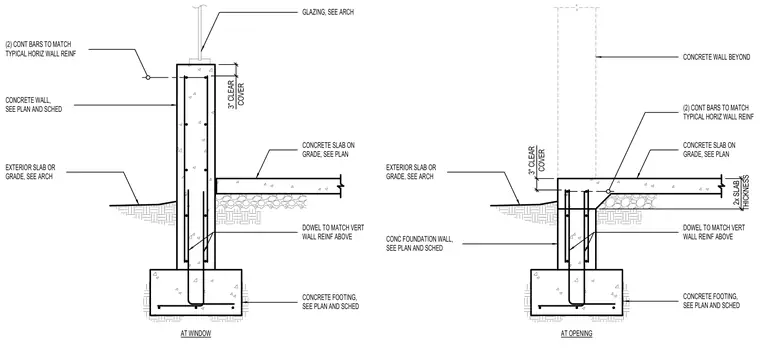

Concrete foundation walls and footings interface with exterior slabs on grade and window or opening conditions. Vertical wall reinforcement dowels tie into the concrete footing with three inches of clear cover, while two continuous horizontal bars match typical wall reinforcement. An exterior slab on grade abuts the foundation wall, and a concrete slab on grade ties into the interior face. Glazing or wall extensions continue above depending on the specific opening condition.
