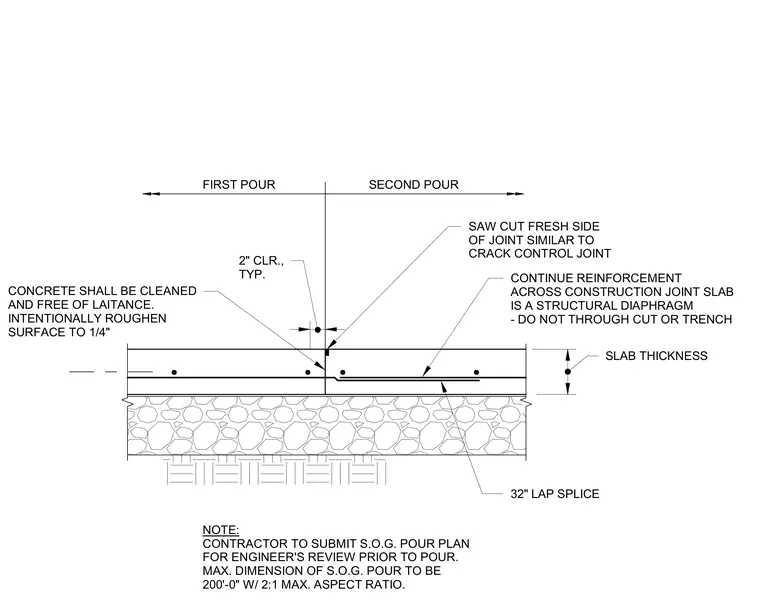

Sequential concrete placements meet at a construction joint where the hardened face is cleaned and intentionally roughened to one-quarter inch. Reinforcing steel continues across the joint with a thirty-two-inch lap splice, maintaining structural diaphragm action. A fresh-side saw cut matches crack control joint profiles. Two inches of concrete clearance is provided typically throughout the slab thickness.
CONTINUE REINFORCEMENT ACROSS CONSTRUCTION JOINT SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH SAW CUT FRESH SIDE OF JOINT SIMILAR TO CRACK CONTROL JOINT FIRST POUR SECOND POUR NOTE: CONTRACTOR TO SUBMIT S.O.G. POUR PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. MAX. DIMENSION OF S.O.G. POUR TO BE 200'-0" W/ 2:1 MAX. ASPECT RATIO. SLAB THICKNESS 2" CLR., TYP. CONCRETE SHALL BE CLEANED AND FREE OF LAITANCE. INTENTIONALLY ROUGHEN SURFACE TO 1/4" 32" LAP SPLICE
