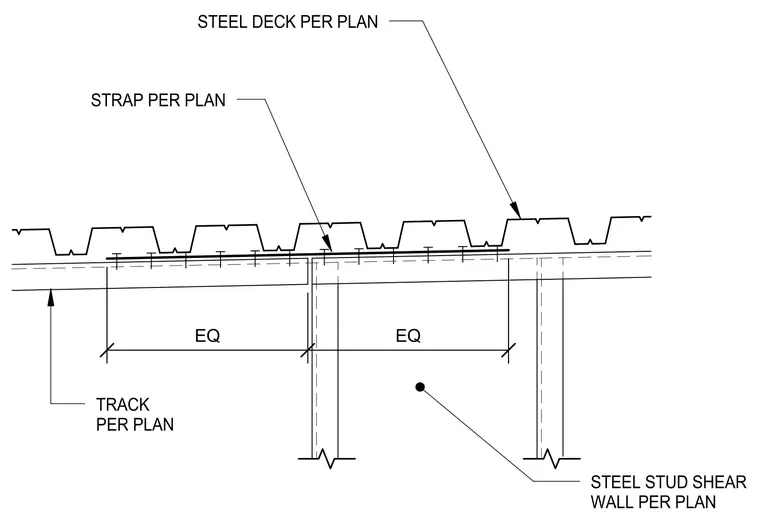

A steel strap per plan bridges the wall assembly, anchored with mechanical fasteners to the underlying track per plan. The steel deck per plan bears directly on the track assembly with equal spacing configurations. All member sizes and fastener schedules are specified per the structural engineering plans.
EQ EQ STEEL DECK PER PLAN STRAP PER PLAN STEEL STUD SHEAR WALL PER PLAN TRACK PER PLAN
