A wood nailer blocking assembly is supported by a steel truss girder. A 4x6 wood blocking is positioned between truss purlins and secured using quarter-inch thick steel plates measuring 4 inches by 7 inches on each side. These plates are located 2 feet from each side of the truss purlins and fastened with two three-quarter-inch diameter through bolts at a 4-inch gauge. Two rows of nailing are specified at blocking spacing, with alternating configurations of four lines for staggered nailing and six lines where three lines of nailing are required. A quarter-inch fillet weld secures the assembly.

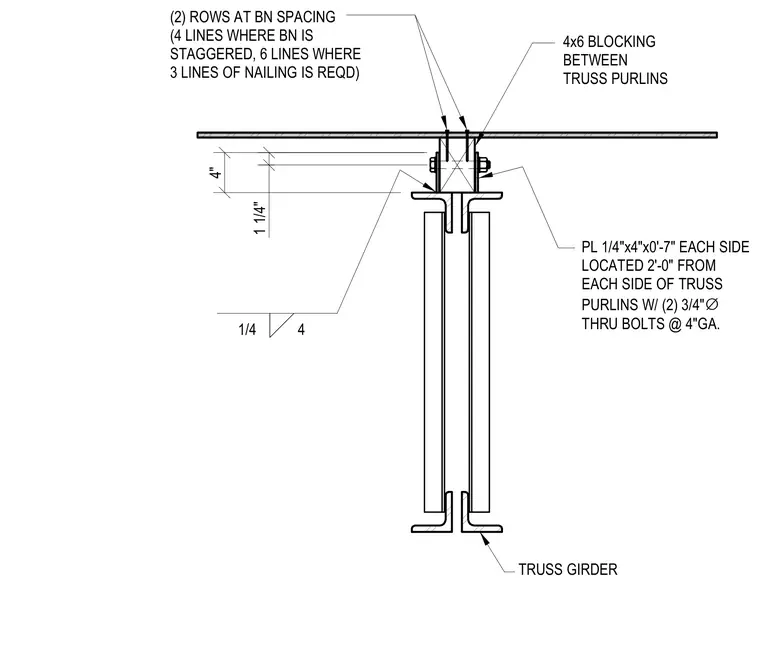

4" 1 1/4" TRUSS GIRDER 4x6 BLOCKING BETWEEN TRUSS PURLINS PL 1/4"x4"x0'-7" EACH SIDE LOCATED 2'-0" FROM EACH SIDE OF TRUSS PURLINS W/ (2) 3/4" ∅ THRU BOLTS @ 4"GA. (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 1/4 4
