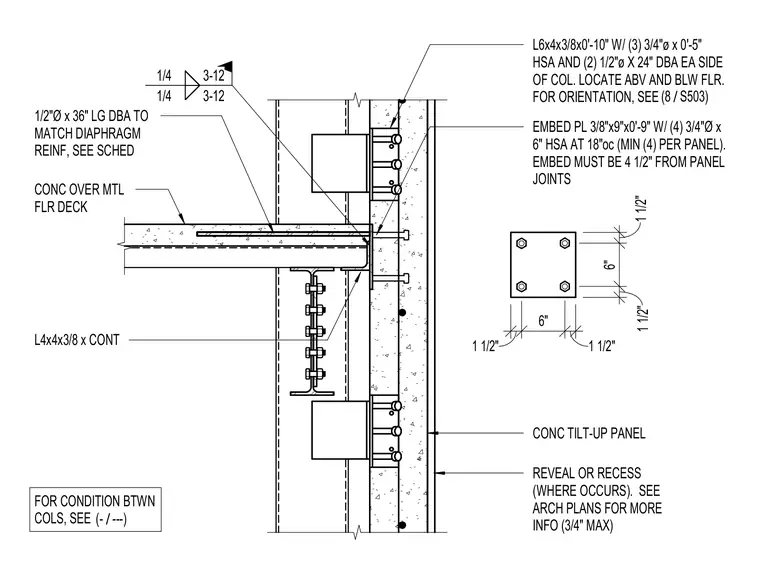

A structural drag connection transfers lateral diaphragm loads between a concrete-filled metal floor deck and a concrete tilt-up wall panel via a steel column. An L6x4x3/8 angle measuring zero feet ten inches long connects with three three-quarter-inch diameter by five-inch heavy stud anchors and two one-half-inch diameter by twenty-four-inch deformed bar anchors on each side of the column, located above and below the floor level. A three-eighths-inch by nine-inch by nine-inch embed plate with four three-quarter-inch diameter by six-inch heavy stud anchors at eighteen inches on center is cast into the concrete tilt-up panel. One-half-inch diameter by thirty-inch long deformed bar anchors match the diaphragm reinforcement per the schedule, tying the concrete over the metal floor deck into the assembly.
1 1/2" 6" 1 1/2" 1/4 1/4 3-12 3-12 1/2"Ø x 36" LG DBA TO MATCH DIAPHRAGM REINF, SEE SCHED CONC OVER MTL FLR DECK L4x4x3/8 x CONT REVEAL OR RECESS (WHERE OCCURS). SEE ARCH PLANS FOR MORE INFO (3/4" MAX) CONC TILT-UP PANEL EMBED PL 3/8"x9"x0'-9" W/ (4) 3/4"Ø x 6" HSA AT 18"oc (MIN (4) PER PANEL). EMBED MUST BE 4 1/2" FROM PANEL JOINTS 1 1/2" 6" 1 1/2" L6x4x3/8x0'-10" W/ (3) 3/4"ø x 0'-5" HSA AND (2) 1/2"ø X 24" DBA EA SIDE OF COL. LOCATE ABV AND BLW FLR. FOR ORIENTATION, SEE / (8 S503) FOR CONDITION BTWN COLS, SEE / (- ---)
