Structural · S-F37DQ

Typical Joist Bearing Ends

Materials

Steel

Elements

Beams

Connections

Bolted Connection

About this detail

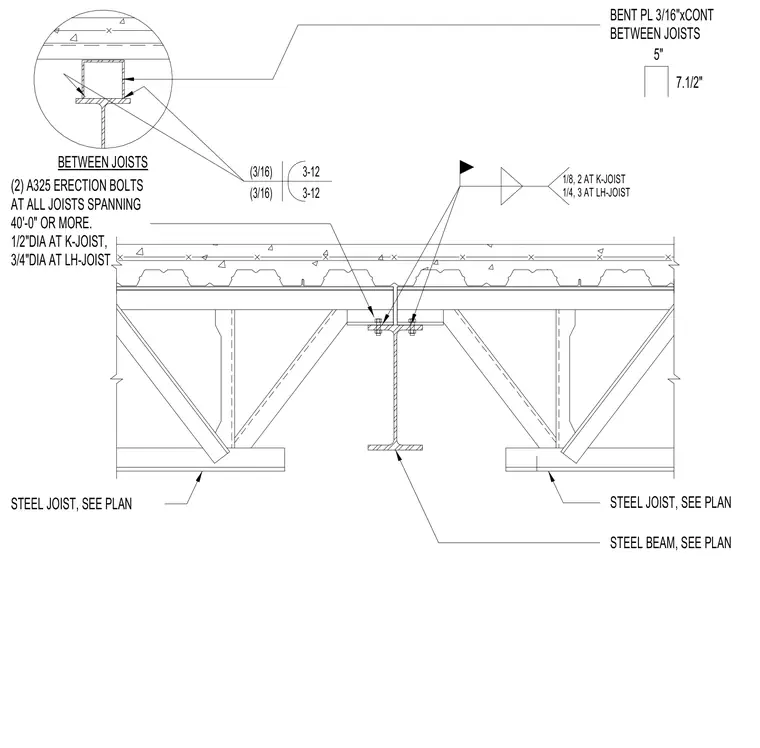

Steel joists bear on a supporting steel beam with a five-inch bearing end condition. Two A325 erection bolts are required at all joists spanning forty feet or more. A continuous three-sixteenths-inch bent plate runs between the joists. Fillet welds and anchor details vary by joist series, using half-inch diameter anchors for K-series joists and three-quarter-inch diameter anchors for LH-series joists.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
