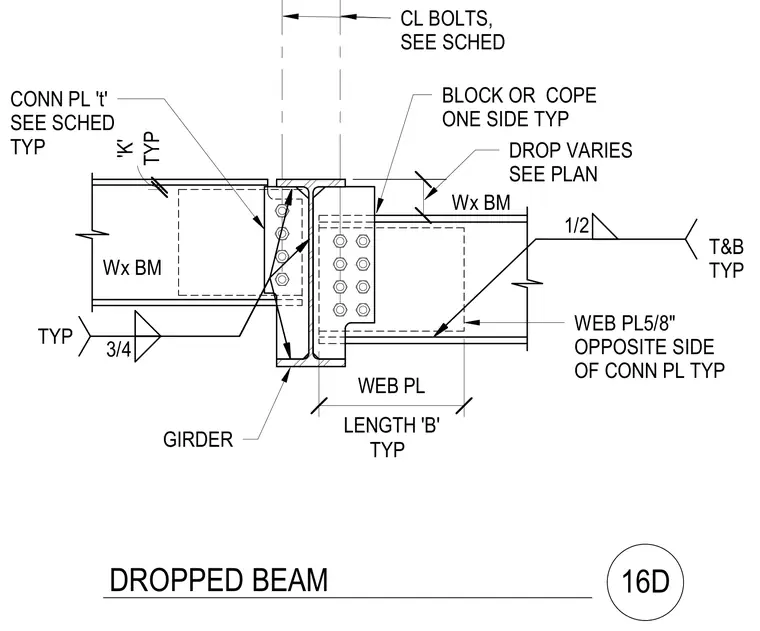

A wide-flange beam frames into a supporting girder with a variable drop height specified per plan. The connection utilizes a connection plate of thickness t sized per schedule, bolted with standard center-line bolts and reinforced with a five-eighths inch web plate on the opposite side of the connection plate. The supported beam top flange is blocked or coped on one side as typical. Fillet welds of three-quarter inch and one-half inch sizes secure the plates and web components as indicated.
DROP VARIES SEE PLAN GIRDER Wx BM BLOCK OR COPE ONE SIDE TYP Wx BM CONN PL 't' SEE SCHED TYP CL BOLTS, SEE SCHED 3/4 TYP T&B TYP 1/2 WEB PL5/8" OPPOSITE SIDE OF CONN PL TYP LENGTH 'B' WEB PL TYP TYP 'K' DROPPED BEAM 16D
