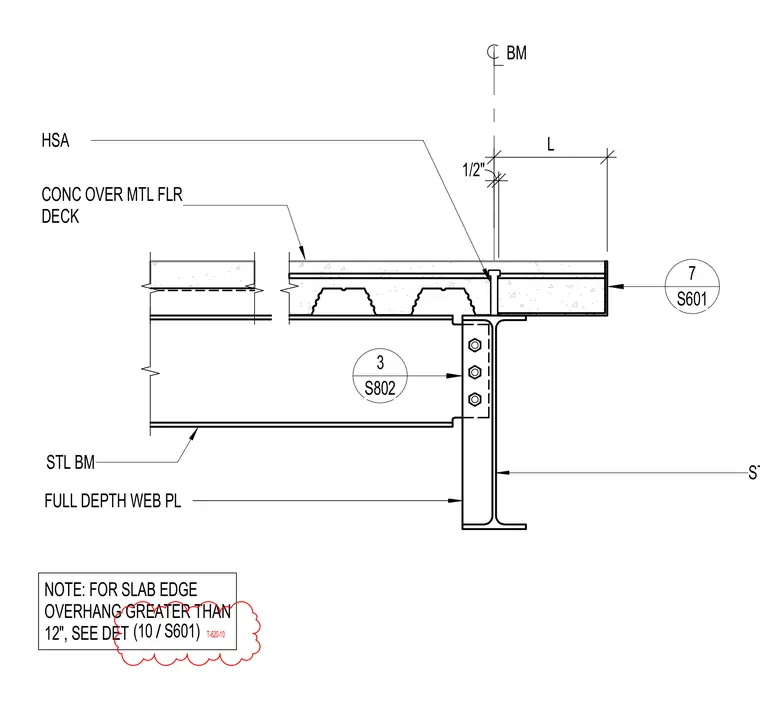

A concrete slab over metal floor deck extends past a steel beam support, creating a slab edge overhang. The steel beam connects to a supporting steel member using a full depth web plate and bolted connections. A horizontal clearance is provided at the slab edge condition, with a note directing to a separate detail when the slab edge overhang exceeds twelve inches.
STL BM CONC OVER MTL FLR DECK L 1/2" HSA STL BM BM NOTE: FOR SLAB EDGE OVERHANG GREATER THAN 12", SEE DET FULL DEPTH WEB PL 7 S601 / (10 S601) T-620-10 3 S802
