Structural · S-F2H26

Exterior Concrete Tilt-Up Wall Panel Connection to Footing

Materials

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

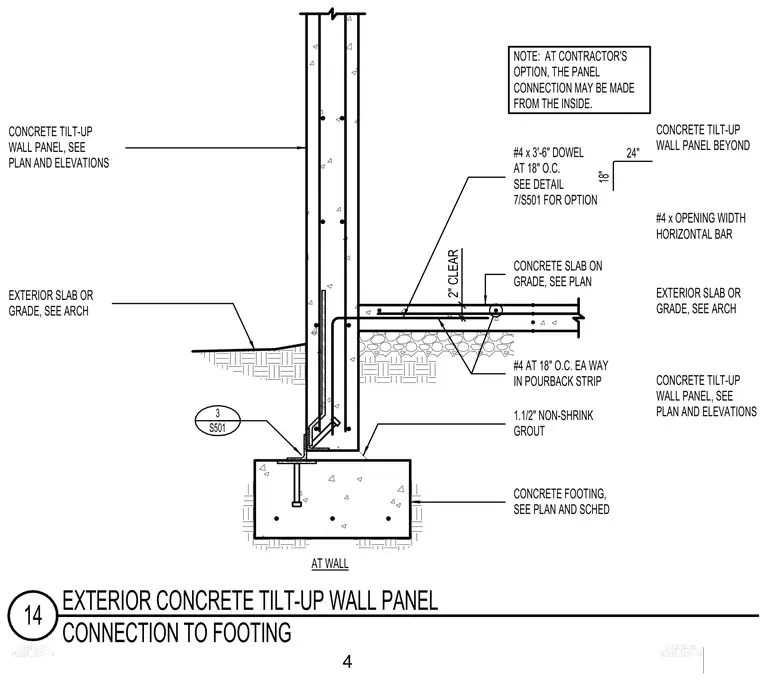

A concrete tilt-up wall panel bears onto a continuous concrete footing with a one-and-a-half-inch non-shrink grout layer underneath. Number four dowels measuring three feet six inches long are placed at eighteen inches on center across the joint, with an alternative connection option referenced on detail seven of sheet S501. A concrete slab on grade ties into the wall assembly via a pourback strip containing number four reinforcing bars at eighteen inches on center each way. An exterior slab or grade meets the exterior face of the wall panel as specified by architectural drawings. Horizontal number four bars matching the opening width run within the wall assembly above the slab intersection. The contractor has the option to execute this panel connection from the inside.
