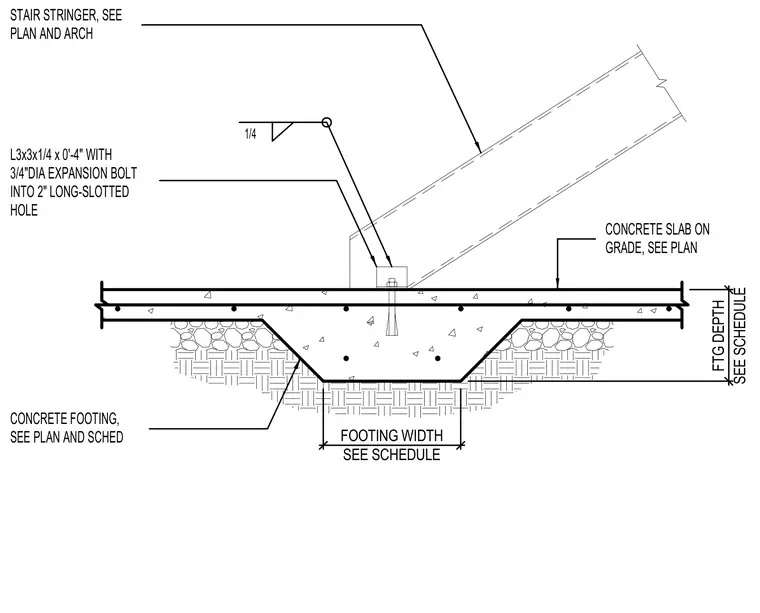

A structural stair stringer bears onto a concrete slab on grade and concrete footing, sized per plan and schedule. The stair stringer connects via an L3x3x1/4 angle, four inches long, secured with a three-quarter-inch diameter expansion bolt into a two-inch long-slotted hole. A quarter-inch fillet weld joins the angle to the stringer assembly. The assembly ties into the slab on grade and a thickened concrete footing with variable depth and width per schedule.
L3x3x1/4 x 0'-4" WITH 3/4"DIA EXPANSION BOLT 1/4 CONCRETE SLAB ON GRADE, SEE PLAN STAIR STRINGER, SEE PLAN AND ARCH INTO 2" LONG-SLOTTED HOLE CONCRETE FOOTING, SEE PLAN AND SCHED FTG DEPTH FOOTING WIDTH SEE SCHEDULE SEE SCHEDULE
