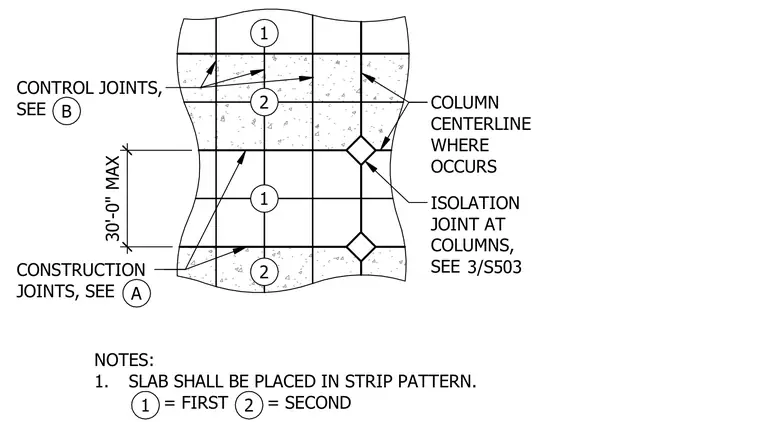

Concrete slabs-on-grade are placed in a patterned sequence utilizing alternating first and second pour strips with a maximum spacing of thirty feet. Control joints and construction joints divide the slab areas between column centerlines. Isolation joints are provided at structural columns to allow independent movement.
NOTES: 1. SLAB SHALL BE PLACED IN STRIP PATTERN. = FIRST = SECOND COLUMN CENTERLINE WHERE OCCURS ISOLATION JOINT AT COLUMNS, SEE CONTROL JOINTS, SEE CONSTRUCTION JOINTS, SEE 30'-0" MAX 1 2 1 2 1 2 A B 3/S503
