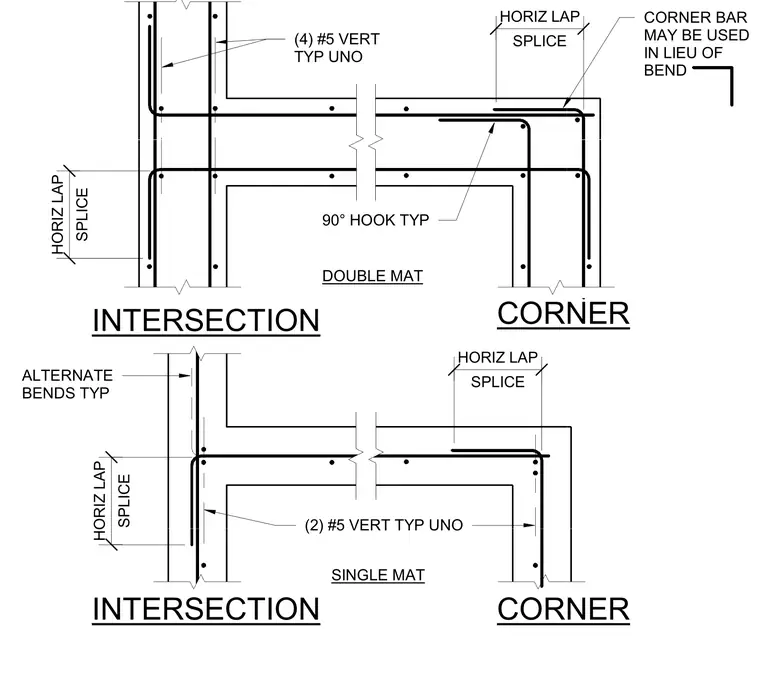

Concrete wall intersections and corners feature vertical reinforcing bars typically consisting of four number five bars for double mat configurations and two number five bars for single mat configurations unless otherwise noted. Horizontal reinforcement utilizes lap splices along the wall runs with ninety degree hooks at corners, though dedicated corner bars may be used in lieu of bent bars. Alternate bends are provided for vertical bars at wall intersections to maintain continuous reinforcement.
CORNER INTERSECTION INTERSECTION CORNER SINGLE MAT DOUBLE MAT (4) #5 VERT TYP UNO CORNER BAR MAY BE USED IN LIEU OF BEND 90° HOOK TYP (2) #5 VERT TYP UNO ALTERNATE BENDS TYP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP
