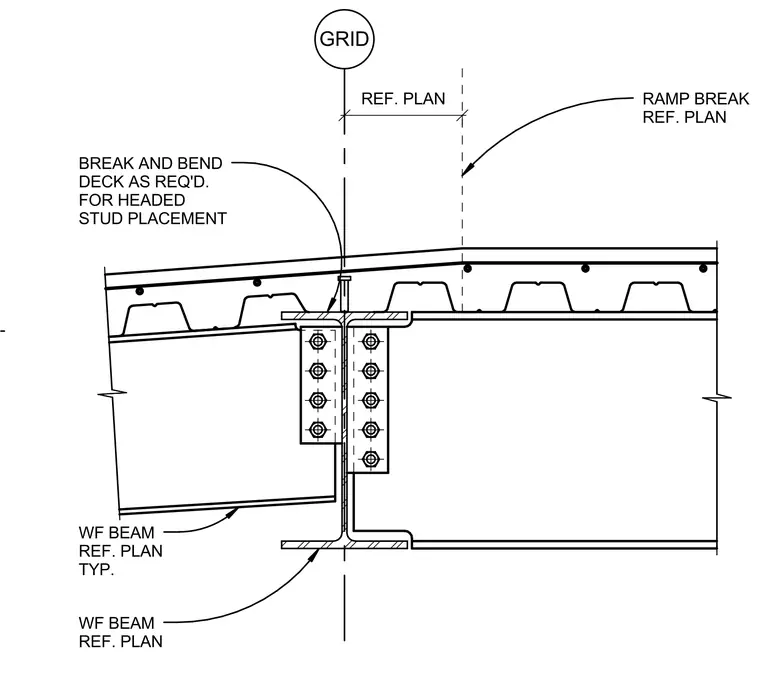

A wide flange beam framing connection is located at a slope transition and grid line. The steel deck is broken and bent as required to accommodate headed stud placement over the beam support. Wide flange beams are sized per the structural plan, with bolted framing connections joining the structural members. A ramp break is located relative to the grid line as specified in the plans.
GRID BREAK AND BEND DECK AS REQ'D. FOR HEADED STUD PLACEMENT REF. PLAN WF BEAM REF. PLAN TYP. WF BEAM REF. PLAN RAMP BREAK REF. PLAN
