Structural · S-EZT6E

Typical Moveable Partition Support Beam

Materials

Concrete Steel

Elements

Columns Beams Walls Partitions Bracing Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Beam-to-Column Bracing Connection Welded Connection Bolted Connection Embed Plate

About this detail

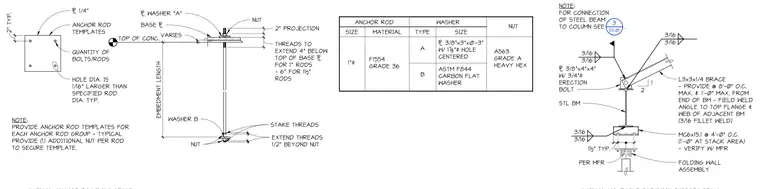

An anchor rod assembly features an ASTM F1554 Grade 36 anchor rod with a base plate, anchor rod templates, and ASTM A563 Grade A heavy hex nuts. Washer type A uses a 3/8-inch by 3-inch by 0-foot 3-inch plate with a 1-1/8-inch centered hole, while washer type B uses an ASTM F844 carbon flat washer. Threads extend 4 inches below the top of the base plate for 1-inch rods and 6 inches for 1-1/2-inch rods, with threads staked and extending 1/2 inch beyond the nut with a 2-inch projection. A steel channel MC6x15.1 is positioned at 4 feet 0 inches on center, spaced at 1 foot 0 inches at the stack area, supporting a folding wall assembly per the manufacturer. An L3x3x1/4 angle brace is provided at 8 feet 0 inches maximum on center and 1 foot 0 inches maximum from the end of the beam, field-welded to the top flange and web of the adjacent steel beam with a 3/16-inch fillet weld. A 3/8-inch by 4-inch by 4-inch plate with a 3/4-inch erection bolt connects the bracing members.
