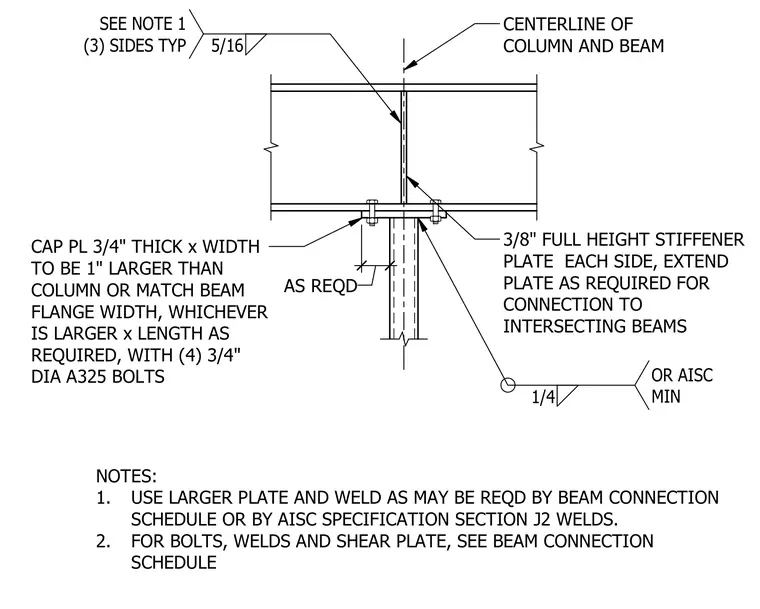

A structural steel beam bears onto a column using a three-quarter-inch thick cap plate whose width matches the beam flange or exceeds the column by one inch. Three-eighths-inch full-height stiffener plates are welded to the web and flanges on each side with five-sixteenth-inch fillets on three sides, extending as required for intersecting beams. The connection is secured with four three-quarter-inch diameter A325 bolts. All plates and welds are subject to the beam connection schedule and AISC specification section J2.
NOTES: 1. USE LARGER PLATE AND WELD AS MAY BE REQD BY BEAM CONNECTION SCHEDULE OR BY AISC SPECIFICATION SECTION J2 WELDS. 2. FOR BOLTS, WELDS AND SHEAR PLATE, SEE BEAM CONNECTION SCHEDULE 3/8" FULL HEIGHT STIFFENER PLATE EACH SIDE, EXTEND PLATE AS REQUIRED FOR CONNECTION TO INTERSECTING BEAMS CENTERLINE OF COLUMN AND BEAM CAP PL 3/4" THICK x WIDTH TO BE 1" LARGER THAN COLUMN OR MATCH BEAM FLANGE WIDTH, WHICHEVER IS LARGER x LENGTH AS REQUIRED, WITH (4) 3/4" DIA A325 BOLTS AS REQD 1/4 OR AISC MIN 5/16 SEE NOTE 1 (3) SIDES TYP
