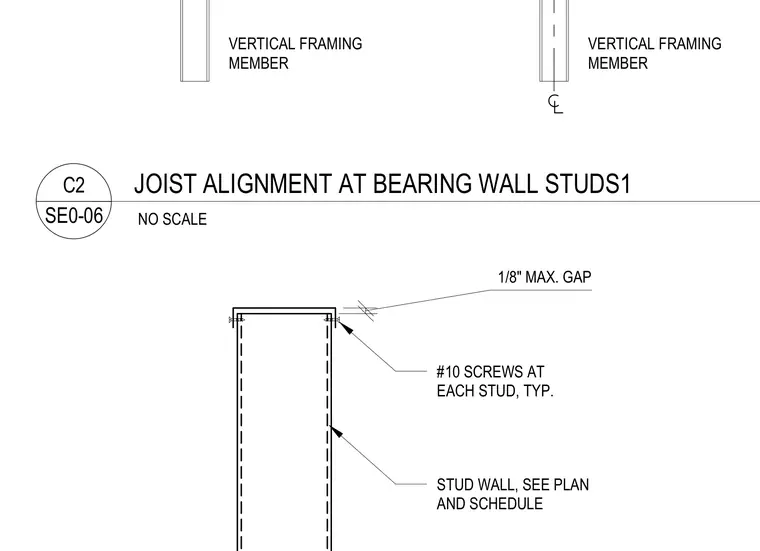

Alignment of joists at bearing wall studs with a maximum gap of one-eighth inch. Vertical framing members are connected using number ten screws at each stud typically, sized per plan and schedule.
1/8" MAX. GAP #10 SCREWS AT EACH STUD, TYP. STUD WALL, SEE PLAN AND SCHEDULE VERTICAL FRAMING MEMBER VERTICAL FRAMING MEMBER NO SCALE SE0-06 C2 JOIST ALIGNMENT AT BEARING WALL STUDS1
