Structural · S-EZFG4

Roof Overhang Condition at Stud Wall

Materials

Steel Timber / Wood

Elements

Beams Walls Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

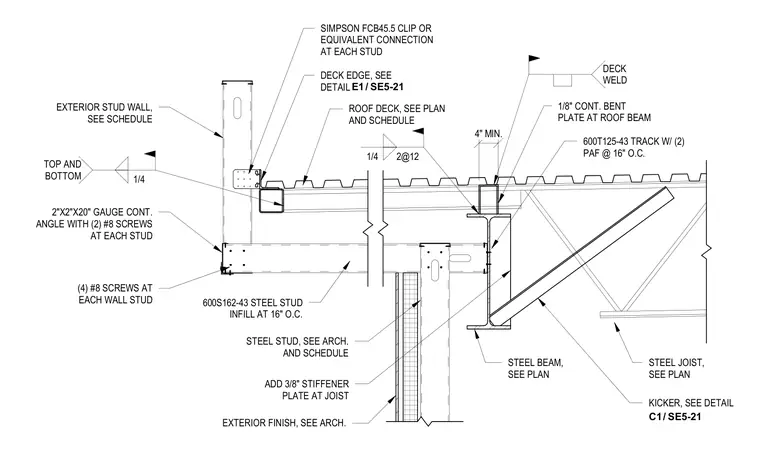

A roof overhang assembly meets an exterior cold-formed steel stud wall over a steel framing system. The roof deck bears over a steel beam and steel joist, secured with a continuous one-eighth-inch bent plate at the roof beam and deck welds spaced at two inches on center. A kicker brace connects to the steel joist per detail C1/SE5-21, while a three-eighth-inch stiffener plate is added to the joist at the beam support. The exterior stud wall consists of 600S162-43 steel studs framed at sixteen inches on center with a 600T125-43 track fastened using powder-actuated fasteners at sixteen inches on center. A Simpson FCB45.5 clip or equivalent connection secures each stud at the deck edge, and a two-by-two-by-twenty-gauge continuous angle attaches to the lower framing with two number eight screws at each stud.
