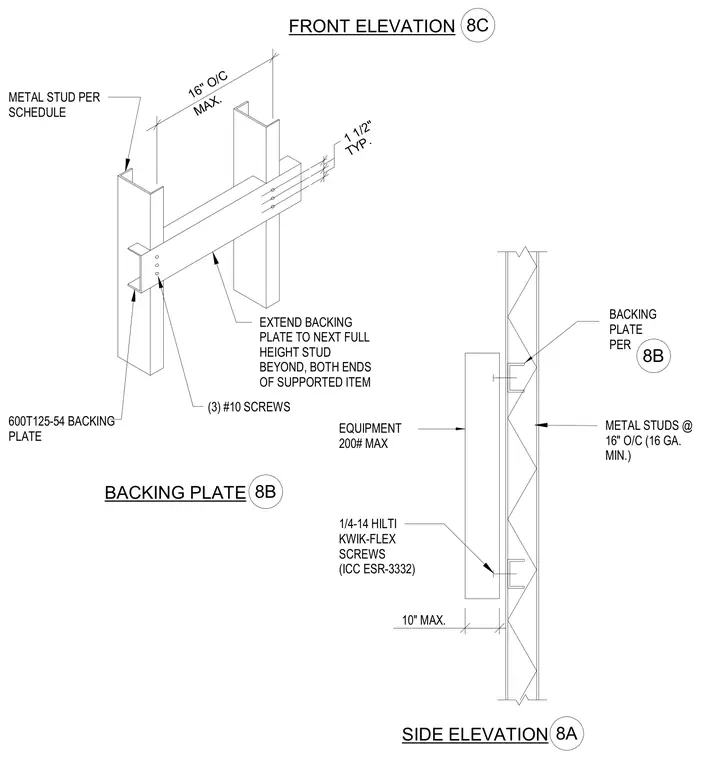

A 600T125-54 cold-formed steel backing plate spans across metal studs spaced at sixteen inches on center. The plate extends to the next full-height stud beyond both ends of the supported item. Three number ten screws fasten each end of the backing plate. Equipment with a maximum weight of two hundred pounds mounts to the assembly using quarter-inch by fourteen Hilti Kwik-Flex screws.
FRONT ELEVATION SIDE ELEVATION 8A 8C BACKING PLATE 8B 8B 10" MAX. BACKING PLATE PER EQUIPMENT 200# MAX 1 1/2" TYP. 16" O/C METAL STUD PER SCHEDULE EXTEND BACKING PLATE TO NEXT FULL HEIGHT STUD BEYOND, BOTH ENDS OF SUPPORTED ITEM 600T125-54 BACKING PLATE (3) #10 SCREWS MAX. 1/4-14 HILTI KWIK-FLEX SCREWS (ICC ESR-3332) METAL STUDS @ 16" O/C (16 GA. MIN.)
