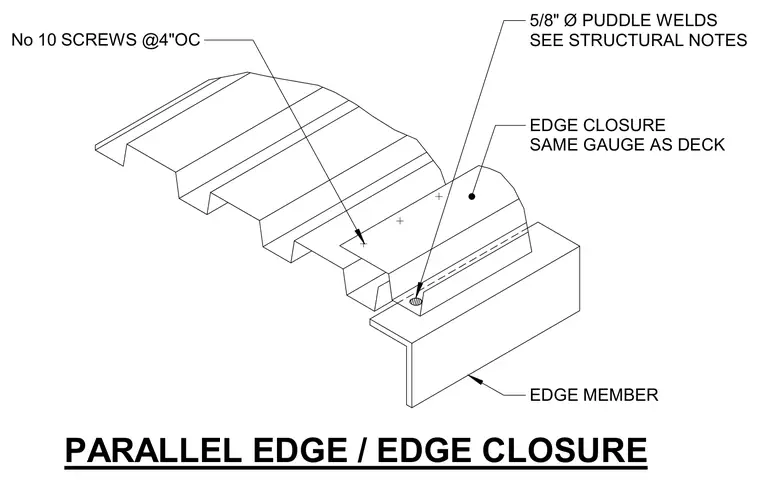

An edge closure of the same gauge as the metal deck sits parallel to the edge member and is secured using number ten screws spaced at four inches on centre. Five-eighths-inch diameter puddle welds attach the metal deck to the underlying structural support per structural notes.
PARALLEL EDGE / EDGE CLOSURE 5/8" Ø PUDDLE WELDS SEE STRUCTURAL NOTES EDGE CLOSURE SAME GAUGE AS DECK No 10 SCREWS @4"OC EDGE MEMBER
