Structural · S-EYNNK

Typical Collector Connection

Elements

Connections

About this detail

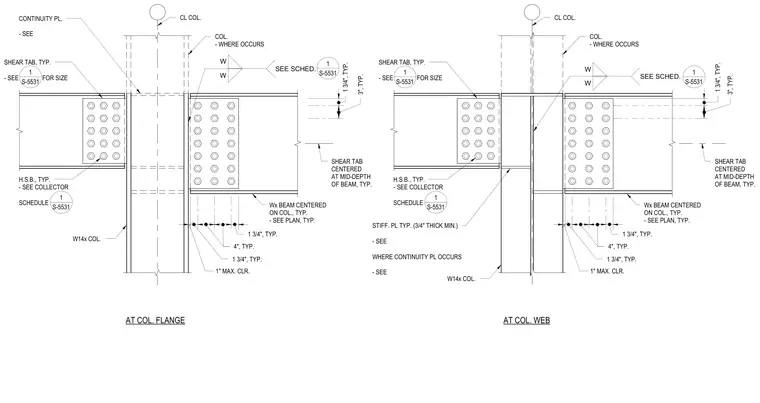

A typical collector connection frames wide-flange beams into a W14 column at both the column flange and column web conditions. The connection utilizes a shear tab centered at the mid-depth of the beam, secured with high-strength bolts sized per the collector schedule. Continuity plates and stiffener plates with a minimum thickness of three-quarters of an inch are provided where indicated by the schedule. A maximum one-inch clearance is maintained between framing elements. Welds are specified as indicated in the schedule and notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
