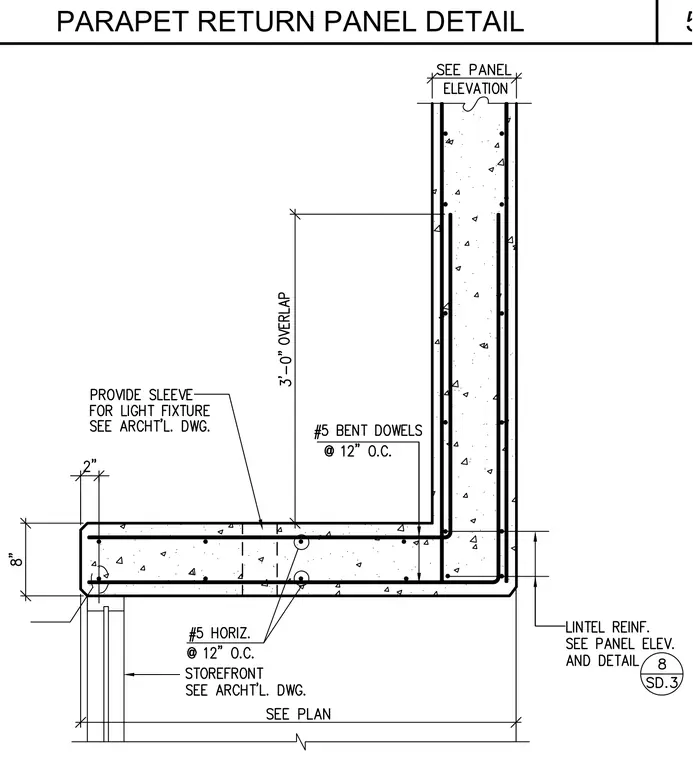

A precast concrete parapet return panel features number 5 bent dowels spaced at twelve inches on center and number 5 horizontal reinforcement at twelve inches on center. The assembly provides a three-foot overlap of vertical reinforcing bars within the corner transition. A sleeve for a light fixture is coordinated per architectural drawings, and a storefront system bears beneath the return leg per plan. Lintel reinforcement is detailed in accordance with the panel elevation and structural detail 8 on sheet SD.3.
