Post-tensioned tendon anchorages feature number three by thirty-inch hairpins placed per note with a two-inch minimum clearance. Two number four continuous backup bars and support bars as required tie the assembly together. Two number four continuous bars run alongside the hairpins. Notes specify hairpin quantities and spacing based on individual or grouped tendon layouts.

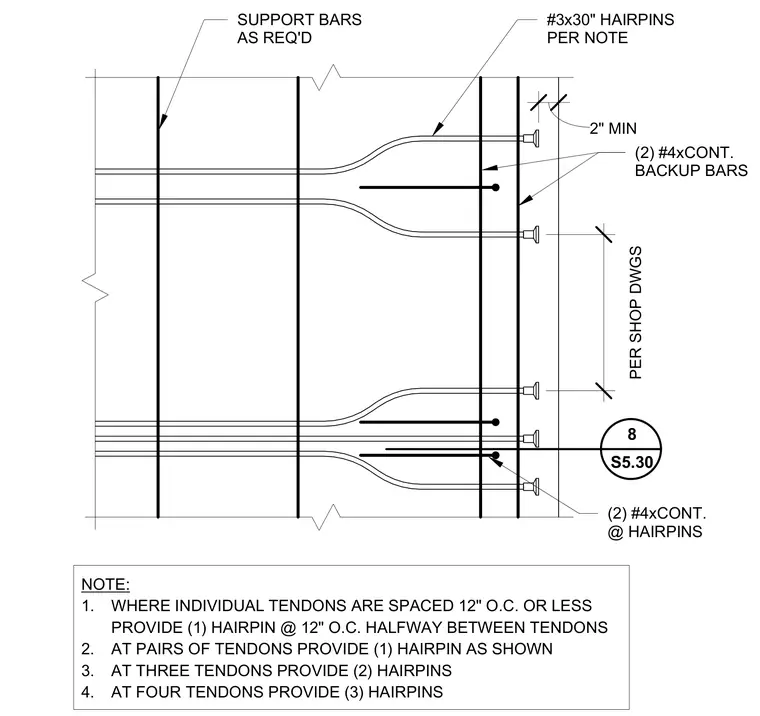

#3x30" HAIRPINS PER NOTE 2" MIN (2) #4xCONT. BACKUP BARS SUPPORT BARS AS REQ'D (2) #4xCONT. @ HAIRPINS PER SHOP DWGS NOTE: 1. WHERE INDIVIDUAL TENDONS ARE SPACED 12" O.C. OR LESS PROVIDE (1) HAIRPIN @ 12" O.C. HALFWAY BETWEEN TENDONS 2. AT PAIRS OF TENDONS PROVIDE (1) HAIRPIN AS SHOWN 3. AT THREE TENDONS PROVIDE (2) HAIRPINS 4. AT FOUR TENDONS PROVIDE (3) HAIRPINS 8 S5.30
