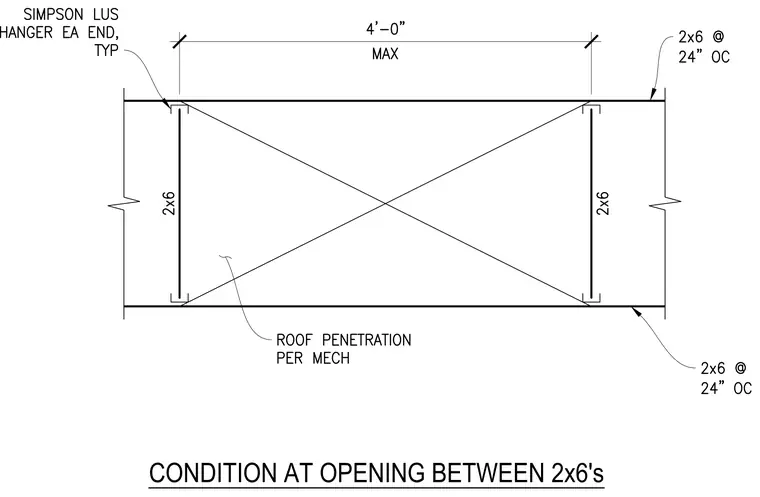

This structural detail shows a framing opening limited to a maximum width of four feet between parallel 2x6 wood framing members spaced at 24 inches on center. Double 2x6 headers or trimmers span the opening perpendicular to the framing, tied at each end with Simpson LUS face-mount hangers. A roof penetration sized per mechanical requirements passes through the framed opening.
