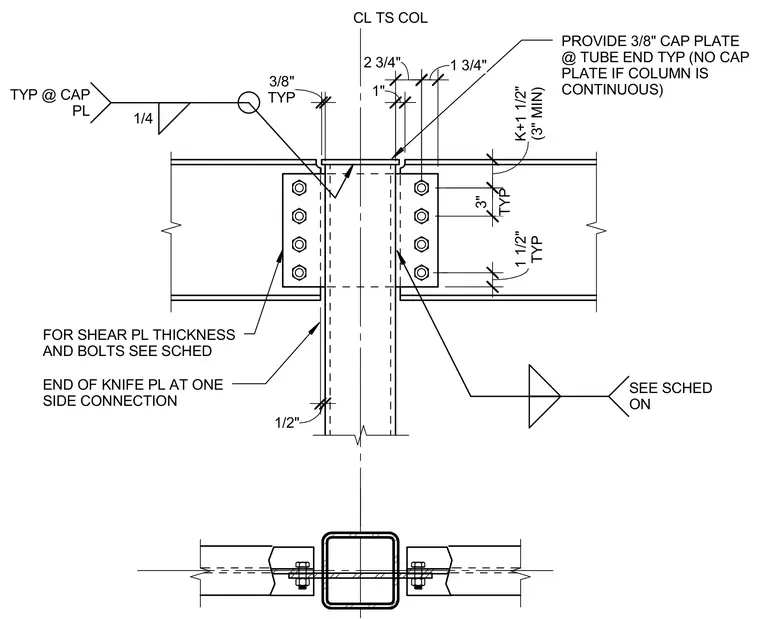

A structural steel beam-to-column connection framing into a hollow structural section tube column via a knife plate. The tubular column features a three-eighths-inch cap plate at the tube end, omitted if the column is continuous. Shear plates connect the supported beams using bolted fasteners with a typical three-inch spacing and one-and-a-half-inch edge distances. A quarter-inch fillet weld secures the cap plate configuration. The knife plate terminates at one-side connections per typical structural details.
CL TS COL PROVIDE 3/8" CAP PLATE @ TUBE END TYP (NO CAP PLATE IF COLUMN IS CONTINUOUS) FOR SHEAR PL THICKNESS AND BOLTS SEE SCHED END OF KNIFE PL AT ONE SIDE CONNECTION TYP 3" (3" MIN) K+1 1/2" TYP 1 1/2" 2 3/4" 1 3/4" SEE SCHED ON 1/2" TYP 3/8" 1/4 TYP @ CAP PL 1"
