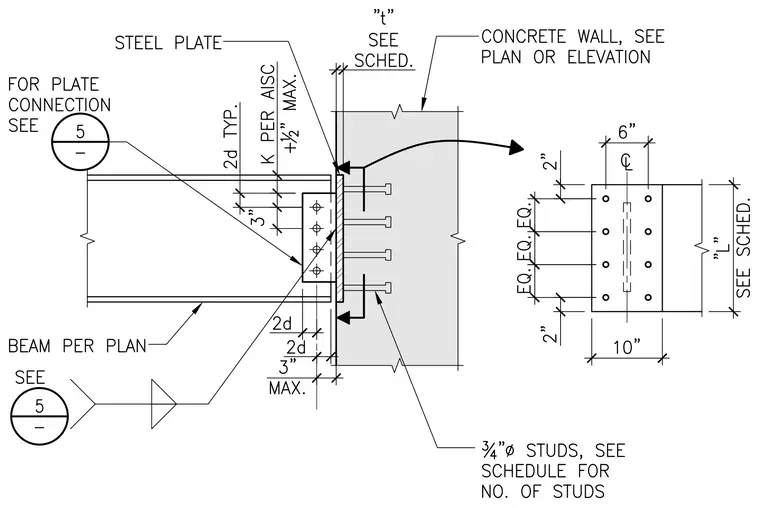

A structural steel beam connects to a concrete wall using a welded single shear plate fastened with one-inch diameter bolts. The steel plate is welded to a bearing plate embedded into the concrete wall with three-quarter-inch diameter studs, sized per the structural schedule. Edge distances and plate dimensions are detailed with standard bolt spacings relative to the center line. A supplementary detail reference indicates further connection requirements for the steel plate.
