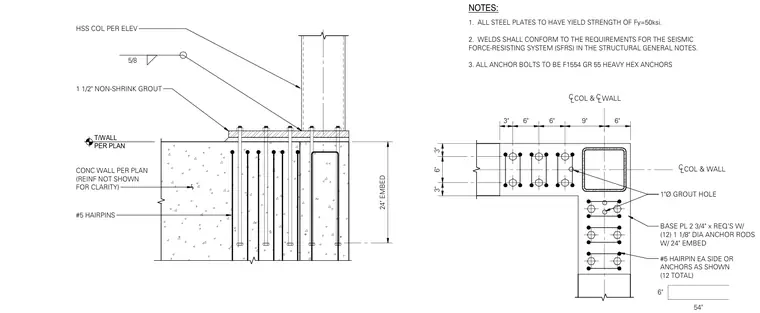

An HSS column base plate connection bears on a concrete wall with a one-and-a-half-inch layer of non-shrink grout. The base plate measures two and three-quarter inches thick, secured with twelve one-and-one-eighth-inch diameter ASTM F1554 Grade 55 heavy hex anchor rods with a twenty-four-inch embedment depth. A one-inch diameter grout hole is centered on the column and wall intersection. Reinforcing includes number five hairpins placed on each side with twenty-four-inch embedment, totaling twelve hairpins. All steel plates are specified with a yield strength of Fy equals fifty ksi, and welds conform to seismic force-resisting system requirements.
T/WALL PER PLAN 1 1/2" NON-SHRINK GROUT NOTES: 1. ALL STEEL PLATES TO HAVE YIELD STRENGTH OF Fy=50ksi. 2. WELDS SHALL CONFORM TO THE REQUIREMENTS FOR THE SEISMIC FORCE-RESISTING SYSTEM (SFRS) IN THE STRUCTURAL GENERAL NOTES. 3. ALL ANCHOR BOLTS TO BE F1554 GR 55 HEAVY HEX ANCHORS BASE PL 2 3/4" x REQ'S W/ (12) 1 1/8" DIA ANCHOR RODS W/ 24" EMBED 1"Ø GROUT HOLE CL COL & CL WALL CL COL & WALL HSS COL PER ELEV 5/8 3" 6" 6" 9" 6" 3" 6" 3" #5 HAIRPIN EA SIDE OR ANCHORS AS SHOWN (12 TOTAL) 6" 54" CONC WALL PER PLAN (REINF NOT SHOWN FOR CLARITY) #5 HAIRPINS 24" EMBED
