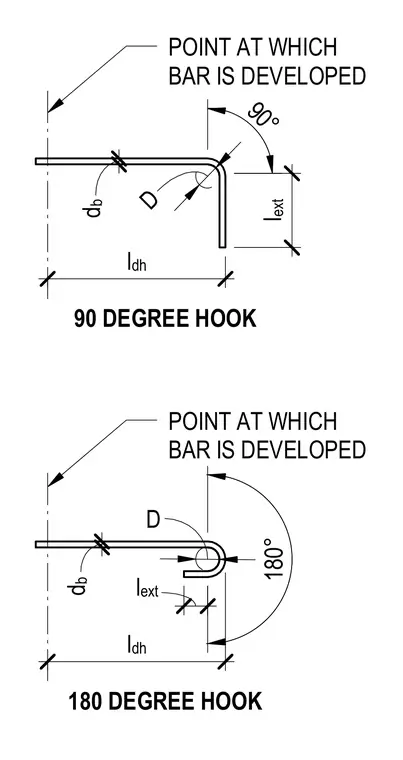

Reinforcing steel bar standard hooks feature 90-degree and 180-degree bends with specified bar diameters, bend diameters, extension lengths, and development lengths measured to the point at which the bar is developed.
90 DEGREE HOOK 180° 2" 1/2" 1/2" 6 1/4" 90° d b d b l ext l ext 180 DEGREE HOOK 15" l dh POINT AT WHICH BAR IS DEVELOPED 2" ø 2" ø D 15" l dh POINT AT WHICH BAR IS DEVELOPED D
